Bell Furnaces / Lift Off Furnaces
Armil CFS manufactures Bell Furnaces and Lift Off Furnaces designed to heat large loads. Furnaces are can be lifted by stationary or mobile lift systems. Armil Bell furnaces are typically fiber lined for light weight and efficient heating.
Bell furnaces are typically used in heat treating or ceramic applications.

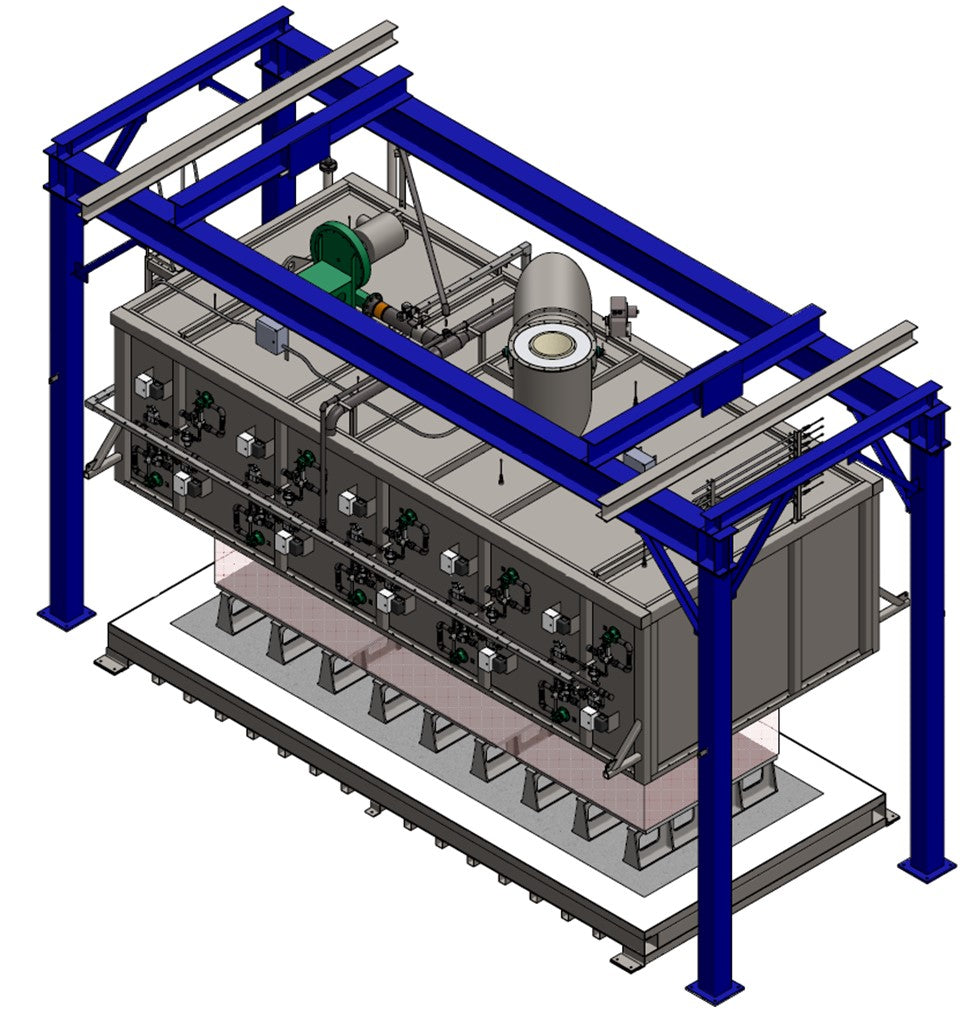

Bell Furnace (Lift Off Furnace)
- Fixed base with ceramic fiber lined Bell furnace
- Inside dimensions 281” x 1-8” x 66” high
- Operating temperature 1000°F—1700°F
- Uniformity—+/-15°F
- Pulse fired burners delivering 3,500,000 BTU

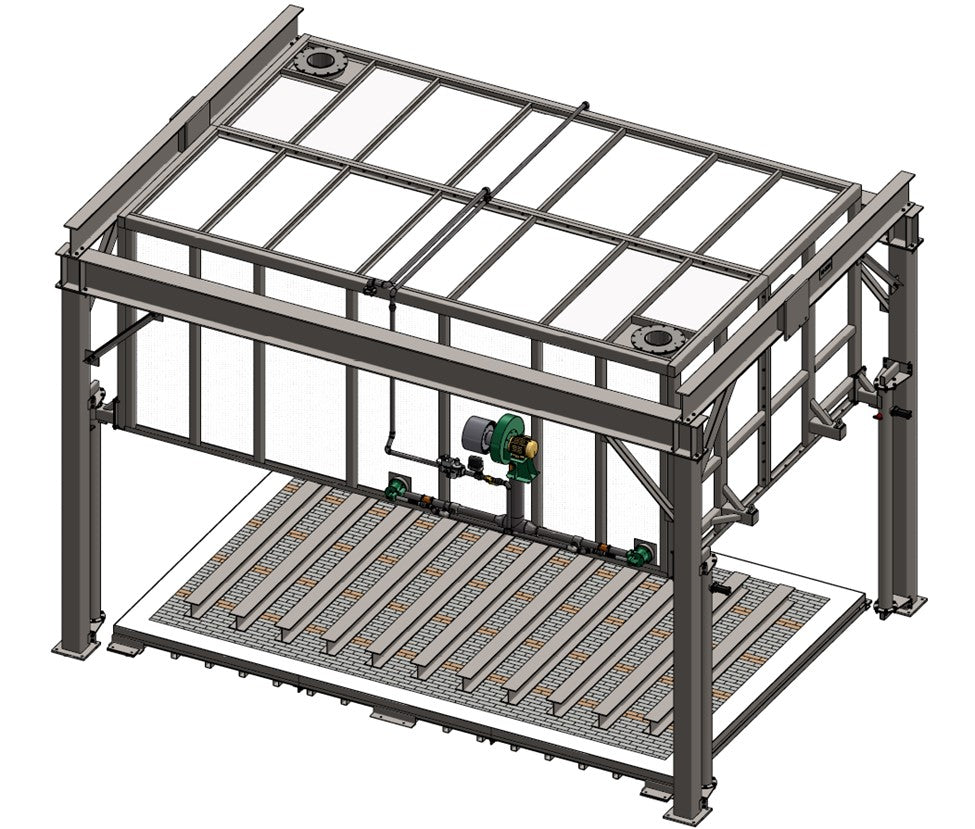

Bell Furnace for Heating Dies
- Operating temperature 500°F—1000°F
- Inside dimensions 14’ x 9’ x 7’high
- 30,000 lb capacity
- Stationary Hearth
