Forging Furnaces
Armil CFS furnaces are leaders in the forging industry and range from pre-engineered natural gas fired Tru-Forge® slot furnaces and Tru-Heat® box furnaces to custom designed systems engineered for specific applications. Forge Furnaces can include temperature uniformity to +/- 5°F NADCAP, data collection, full automation, recuperation, pressure control, oxygen trim, and emission compliance/control. Both box furnaces and slot forging furnace designs reach high temperatures of 2,450°F.
Each furnace is a viable option for forging ferrous and non-ferrous alloys. These forging furnaces can be used for billet heating, annealing or tempering. Armil CFS forge furnaces are made of heavy-duty steel for years of dependable service. The Armil CFS engineering team will also work with your business to develop any customized functions as needed.
Furnaces from Armil CFS offer innovation, service and performance - all forged right here in America! Please click on the images below to see more photos of our forging furnaces at work and contact us with questions or to learn more.

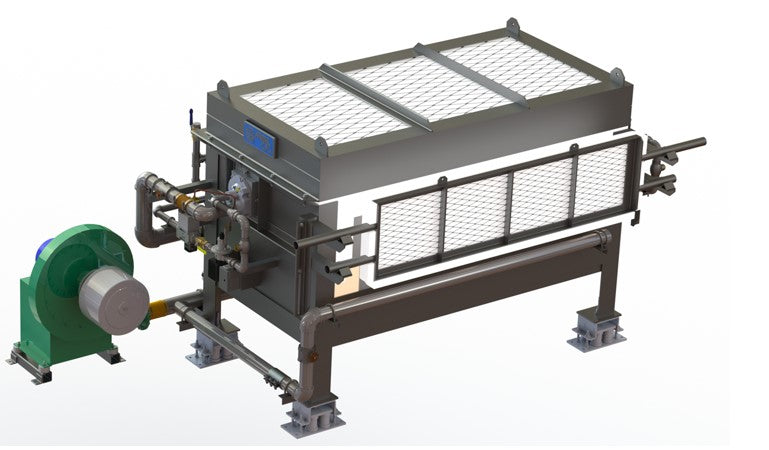

Tru-Forge Slot Forge Furnace
- Pre-Engineered for temperature range of 1500°F—2450°F
- 1500 lb / hour production rate
- Two (2) high velocity burners with Honeywell Controllers and flame supervision
- Operating temp range of 1800°F—2200°F
- Maximum capability—2,500°F
- Internal Size —82”w x 38”d x 24”high
- Pneumatic door
Dual Slot Forge Furnace
- Two(2) Slots 1-1/2” high x 42” long
- Hearth depth is 24”
- Maximum temperature - 2350°F

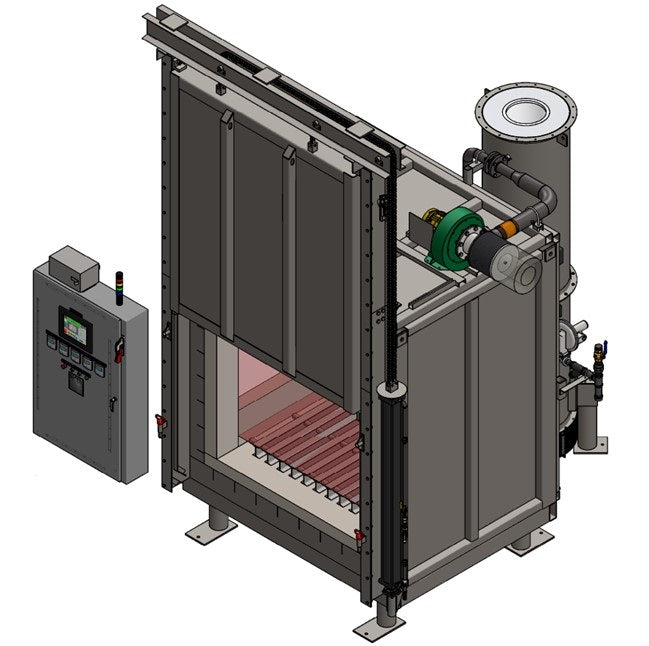

Tru-Heat® Box Furnace for Heating Dies
- Chamber size 5’ wide x 4’ deep x 4’ high
- Operating temperature 600°F—1100°F
