Investment Casting Continuous Furnaces
Armil CFS manufactures pusher and roller hearth furnaces for processing of molds for the investment casting industry. Furnaces can be used preheat, dewax, and curing operations. Furnaces are designed for 1700°F—2250°F with 25°F uniformity.
Pusher furnaces allow for minimum handling of molds, and are available in one, two, or three row configurations. Both manual and automated mold handling systems are available.
Click Here for a Pusher Furnace Brochure
Pusher furnaces for dewax operations can incorporate integral incineration, utilizing the furnace chamber to burn out wax materials. This design may eliminate the need for an afterburner.
Pusher furnaces for preheat locate flues at the charge end of the furnace and burners at the exit end. Cold molds will absorb heat from the hot waste gasses providing more efficient use of available heat.

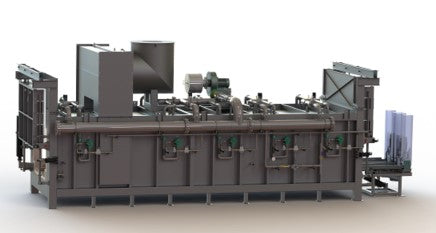

Single Row Burnout / Preheat Furnace with Hydraulic Pusher
- Operating temperature of 1800°F
- Residual wax consumed within furnace chamber
- Semi-automated tray extraction system with return conveyor

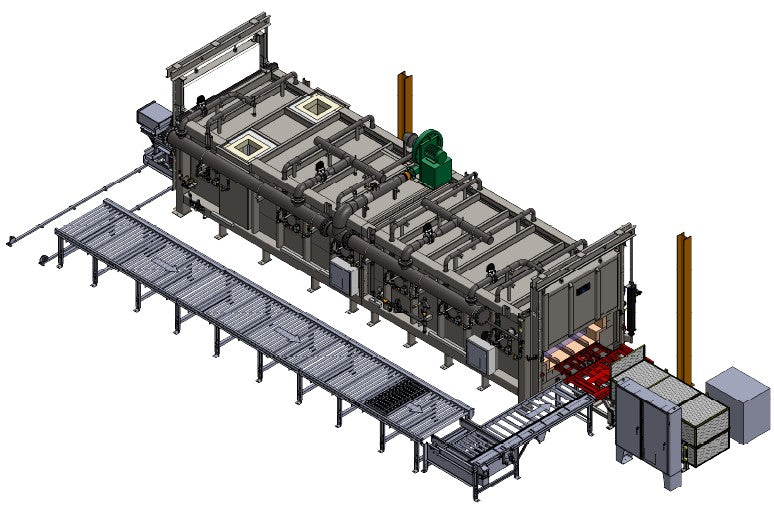

Two Row Pusher Furnace with Automated Electro-Mechanical Handling System
- Low Profile linear chain pusher head
- Operating temperature of 2050°F
- Residual wax consumed within furnace chamber

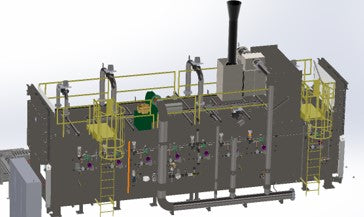

Two Row Pusher Furnace for Preheating of Shells
- Semi-automatic electric pusher
- Manual shell removal
- Furnace operating temperature of 1800°F—2100°F

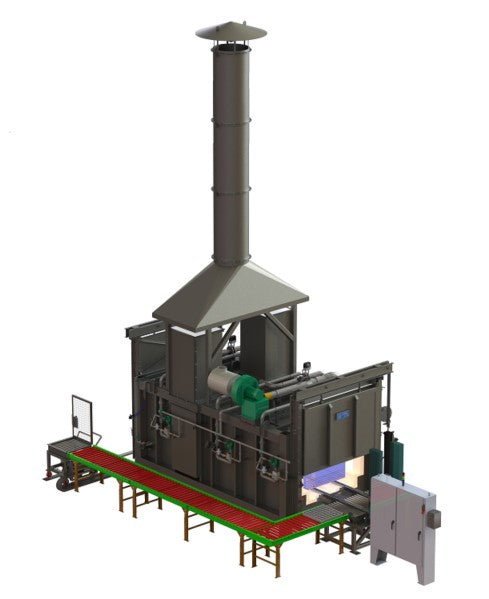

Two Row Pusher Furnace for Preheat and Burnout of Molds
- Operating temperature of 1650°F—2100°F
- Electrically operated automated push and return conveyor
- Doors incorporate distance tranducers allowing for adjustable door opening height
