Investment Casting Batch Furnaces

Armil CFS manufactures box furnaces for batch processing of molds for the investment casting industry. Armil CFS offers both pre-engineered Tru-Heat® furnaces and custom designed box furnaces for special requirements. Furnaces can be designed for use as pre-heat or  burn-out  with afterburner. Flash-fire furnaces are also available.

Click Here for WRF Flash Fire Furnaces

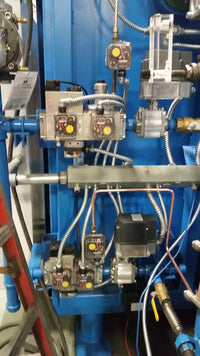

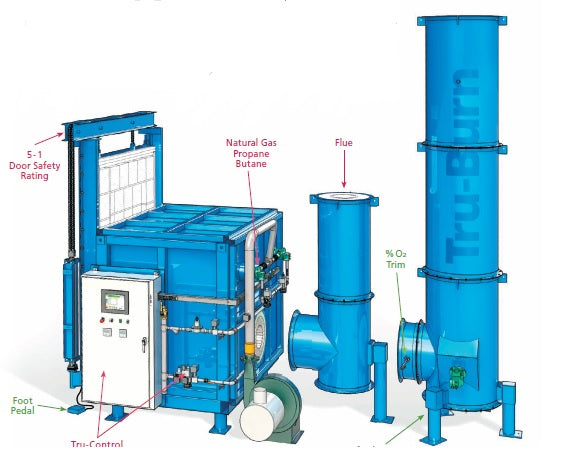

Tru-Heat® Furnaces can be used at operating temperatures from 450°F to 2200°F. True Heat furnaces include Allen Bradley PLC/HMI, Honeywell limit controllers, and Low NOx burners. Furnaces come with a standard 6” thick Fiberfrax ceramic fiber lining, with an optional 9”thick lining available. True Heat furnaces come standard with an insulated flue, a low NOx Tru-Burn afterburner is also available.

Click Here for TruHeat Spec Sheet

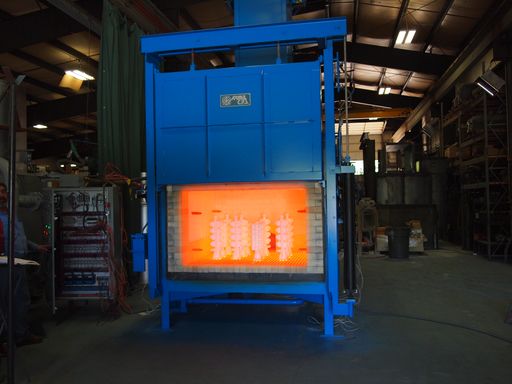

Tru-Heat® Box Burnout Furnace with Afterburner

  • Inside Chamber: 7’wide x 8’deep x 4’high
  • Operating Temperature – 450 ͦF – 1800 ͦF
  • +/- 25 ͦF at thermal equilibrium

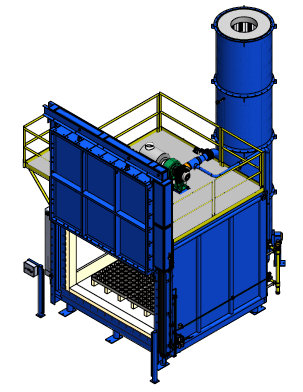

Tru-Heat® Box Furnace with Afterburner

  • Working Area – 5’ wide x 5’ deep x 3’ high
  • Operating temp 450°F – 2200°F

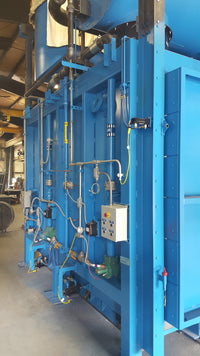

Shuttle Car Bottom Furnace

  • Work Chamber 9’wide x 9’D x 4’ high
  • Operating temperature 450°F-1800°F
  • Temperature Uniformity +/- 25°F

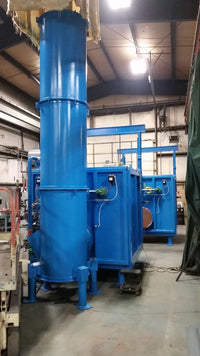

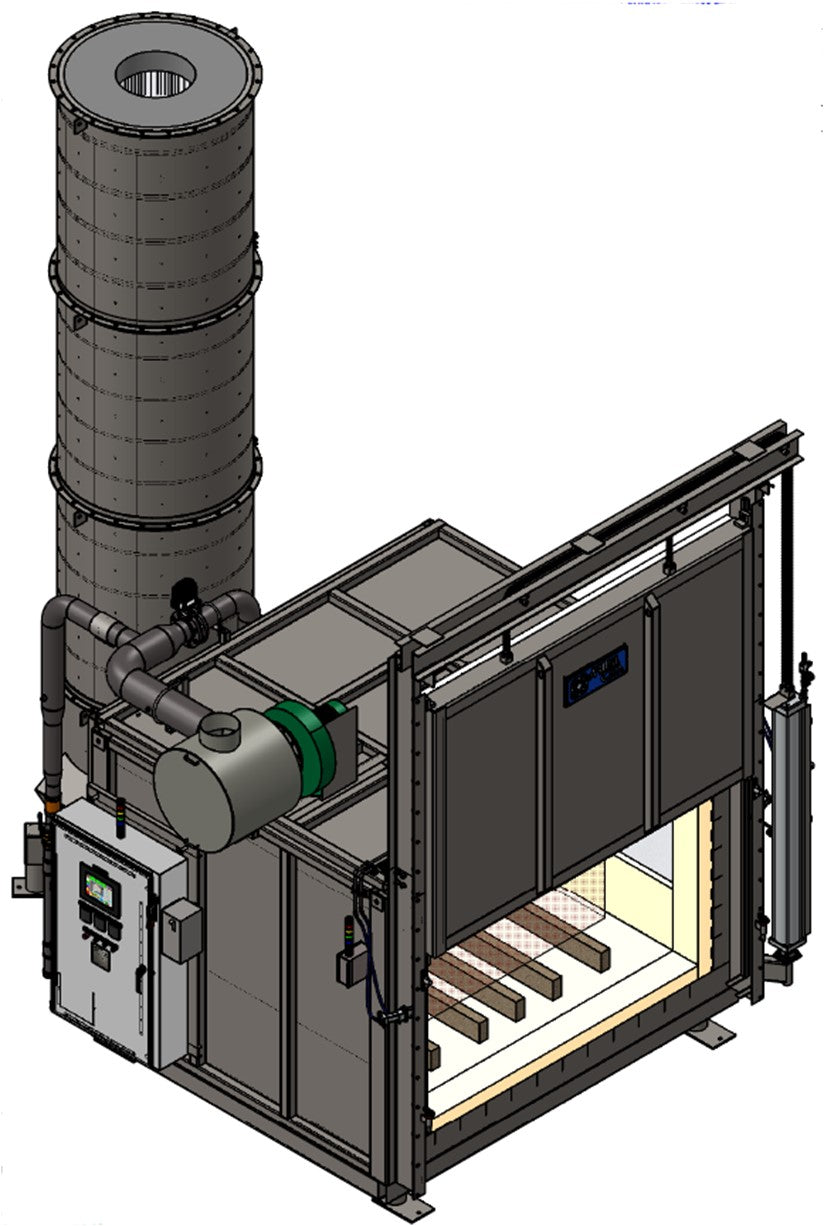

Tru-Heat® Box Furnace with Afterburner

  • Working Dimensions 4’wide x 4’deep x 3’ high
  • Operating temperature 450°F-1800°F
  • Temperature Uniformity +/- 25°F
  • Unique Mold Handling System for loading and unloading furnace trays

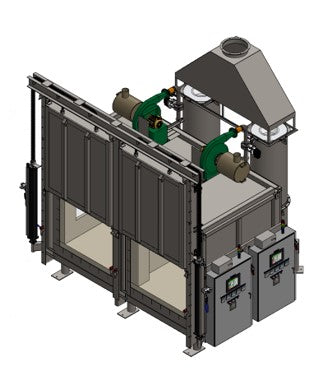

Tru-Heat Burn-Out Furnace with Afterburner

  • 2 doors—1 common chamber
  • 2 work envelopes—4’x4’x4’
  • Operating temperature 450°F—1800°F
  • PLC controlled with touchscreen HMI
