Armil CFS distributes and fabricates BNZ Materials’ Marinite calcium silicate board and Transite fiber cement boards/
Marinite boards, available in several grades, are monolithic, incombustible boards manufactured by combining silica, lime, and reinforcing fibers under hydraulic pressure. The Marinite calcium silicate
Boards formed offer excellent thermal shock resisistance and low thermal conductivity. Marinite products are offered in densities from 47—85 pcf, and temperature resistance to 1800ͦ F.

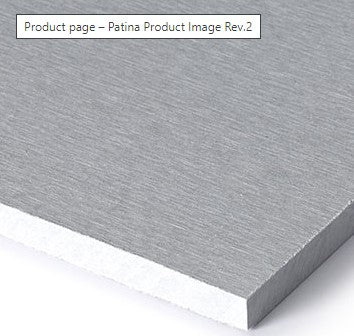

Transite boards, available in 2 grades, are high density, non-asbestos boards composed of Portland cement and refractory fibers
For applications requiring high strength, thermal stability and electrical insulating properties. Transite products are non conductive and have good resistance to alkalies and solvents.

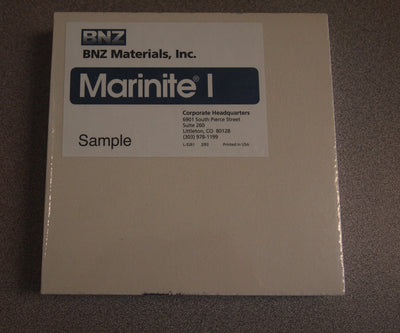

Marinite®I is an incombustible calcium silicate board providing structure and insulation in a single, high strength product. Marinite I is a 46 pcf damage resistant, non corroding, and water resistant panel providing fire safety, insulation, minimal maintenance and fast, easy fabrication. Marinite I is used in oven and dryer construction, and in other housings designed to contain heat. Marinite I is also used in fire stops, fire walls, cable trays, and fire doors.

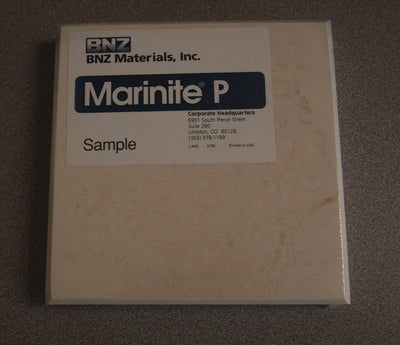

Marinite®P is a 60 pcf incombustible calcium silicate board composed from calcium silicate with inert fillers and reinforcing agents. Marinite P withstands temperatures and pressures associated with platen press operations. Marinite P is also used as back up insulation in rotary kilnsdtrrl lsdles, torpedo cars and tundishes in steel plants. Marinite P is also used as a pallet to support refractory shapes and foundry cores during drying.

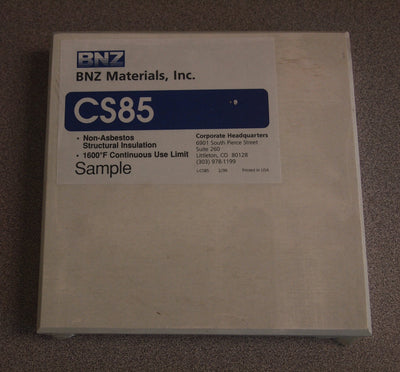

CS85 was developed to be a high temperature replacement for fiber cement boards containing asbestos. CS 85 is a 85 pcf calcium silicate board. CS85 offers both high strength and electrical resistance at temperatures up to 1800°F Applications include platen press insulation, induction furnace casing, electrical resistance insulation, and hot glass handling.

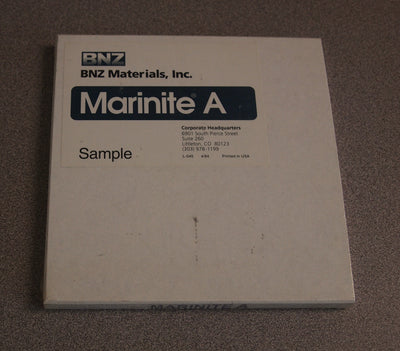

Marinite®A is a 65 pcf heat treated calcium silicate board, formulated for use in conveying, containing, and forming molten aluminum and other non-ferrous metals. Applications include holding furnace linings, transition plates, rings, plugs, baffles, troughs, spouts, floats, and filter boxes.
Transite HT is a high strength, pressed board composed of Portland cement and refractory fibers air cured for exceptional machinability. Transite HT is non-combustible and can withstand temperatures to 450°F (600 with proper conditioning. Transite HT ioffers corrosion and chemical resistance. Transit HT is commonly used in load bearing gaskets, spacers, and supports, fume hood linings, busbar supports, transformer spacers, arc shields, bushings, and mounting plates.

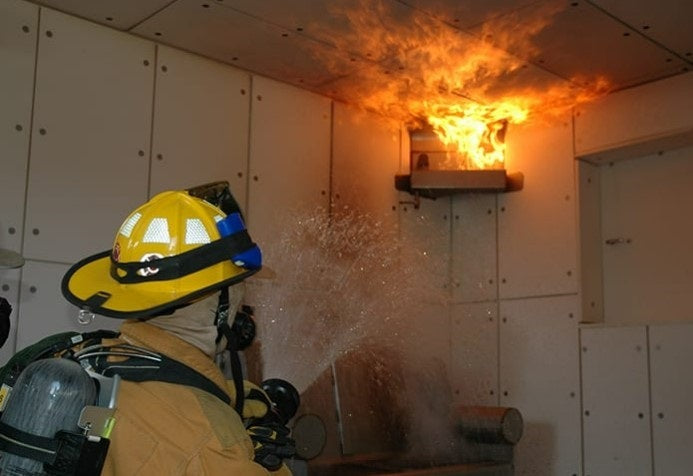

Marinite FT, introduced in 2010 and in use in fire training towers around the world, is the first Marinite product to be designed specifically for use in fire training.
